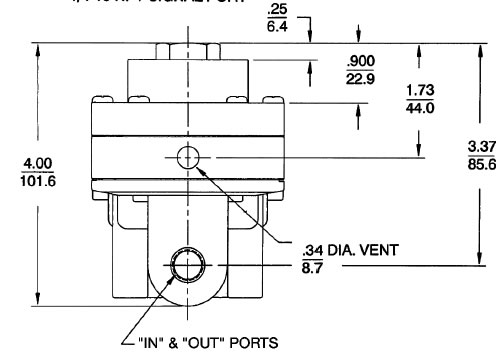

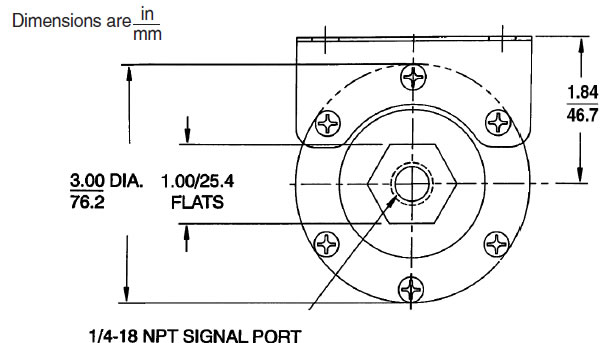

ControlAir 康气通Type 600 流量气动放大器图纸资料说明：

ControlAir 美国康气通 流量放大器&气动继动器 TYPE 600 流量放大器
Type600-BA,Type600-CA,Type600-DA,Type600-BB,Type600-CB,Type600-DB,Type600-BC,Type600-CC,Type600-DC,Type600-BD,Type600-CDType600-DD

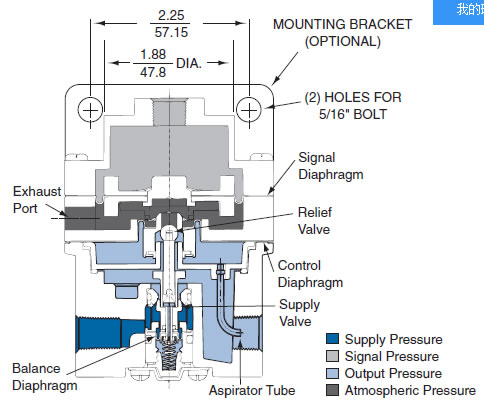

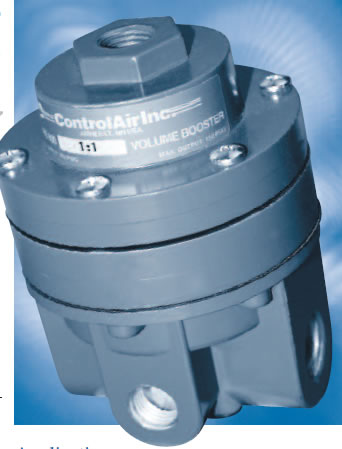

Type 600 Ratio Relay Volume Booster Meet high flow requirements with a low flow pneumatic signal.The Type-600 ratio relay volume booster is designed to use a pneumatic signal to produce an output pressure which has high flow capacity and can be amplified. This unit is most useful for systems requiring the conversion of a low flow control signal to the higher flow requirements of an operating system. Using an independent supply pressure for greater volume, the Type-600 relays up to 50 SCFM flow capacity to a final control element such as a valve actuator. The standard signal to output ratio is 1:1, however, the Type-600 is also available with an amplified signal to output ratio of 1:2, 1:3 and 1:6.F E A T U R E S • High Flow Capacity Allows flows up to 50 SCFM • Amplified Output Available in a signal to output pressure ratio of 1:1, 1:2, 1:3 and 1:6 • Stable Output Venturi aspirator maintains output pressure under varying flow conditions • Balanced Supply Valve Rolling diaphragm design makes unit insensitive to supply pressure variation • Optional Negative Bias 4 psi negative bias option allows "zero" of I/P'sApplications The Type-600 is used extensively for increased flow capacity, pressure amplication, or remote pressure control applications. This includes web tensioning, roll loading, control valve acuators, I/P volume boosting, cylinder actuation, clutch and brake control,and gas flow control.
